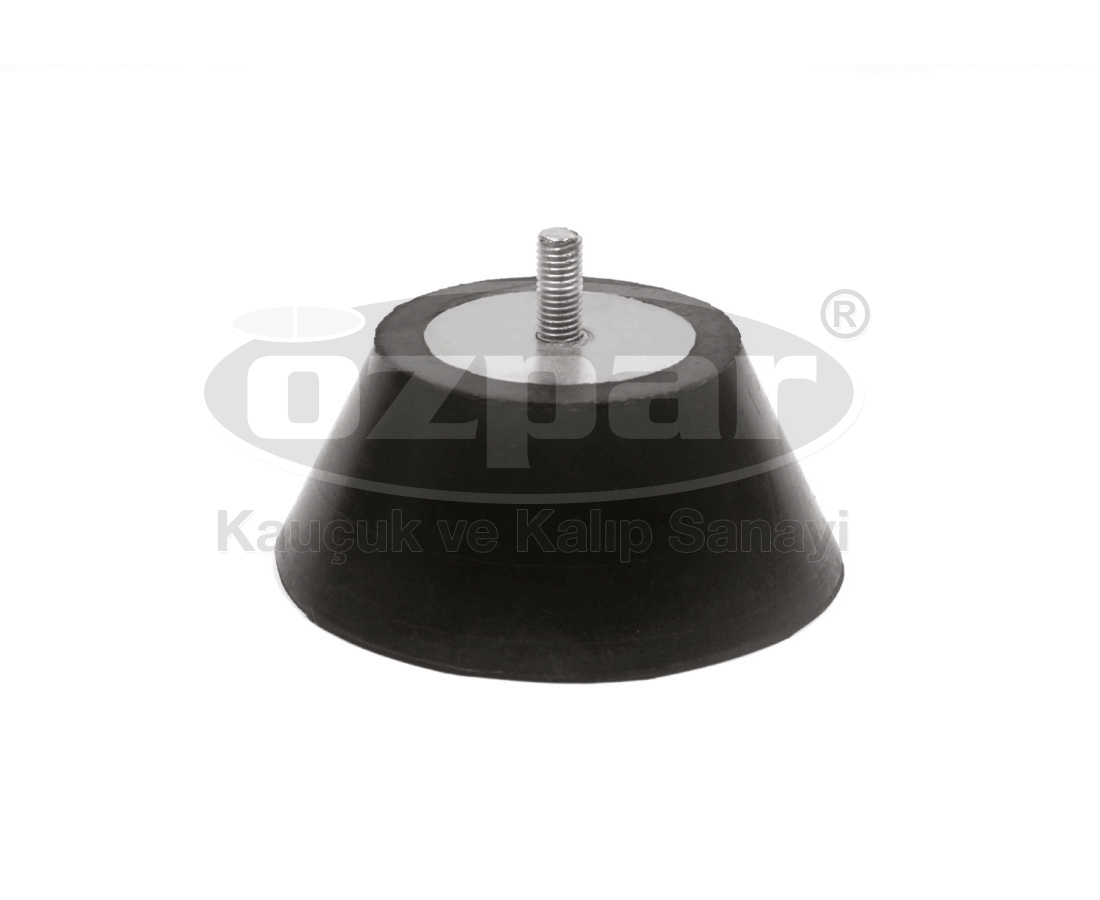

Type KTS

Conical Anti-Vibration Mount

Image module

ITEM

NR – NBR
Strenght
55 – 70 Shore A
Strenght Tolerance
± 5 Shore A

METAL PARTS

Coated
CR+3
White Zinc Coated

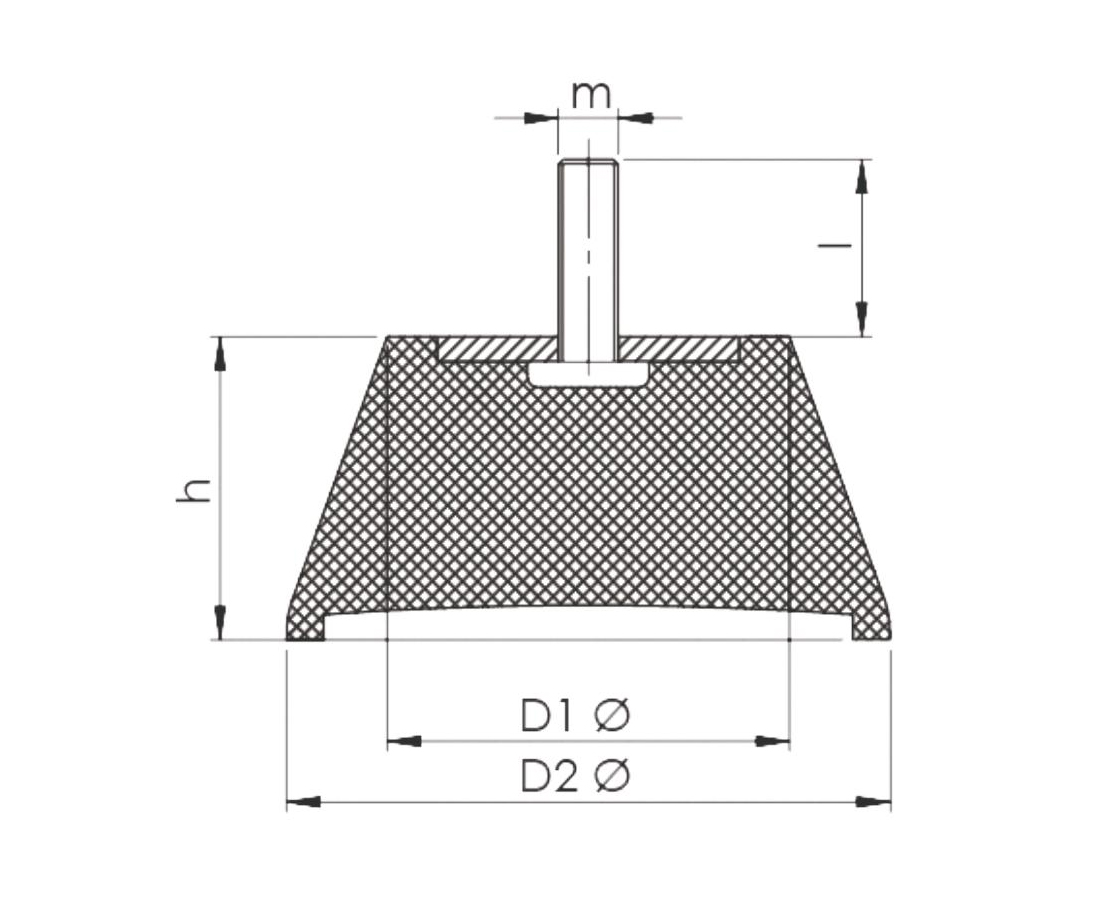

No Product Code d1 d2 h m l
KTS mm mm mm mm mm
1 11050 78 110 50 m.12 27
2 13555 85 135 55 m.12 27
3 14560 93 145 60 m.12 27
4 168105 110 168 105 m.16 40
5 110502 78 110 50 m.20 90
Image module
Manufactured by rubber.It absorves and blocks all the vibrations and impacts it also prevents transmitting to the machine which its installed
Rubber anti-vibration mounts absorve radial and axial forces also protect the mechanism which it is installed in provides long use lasting.
Big motors and industrial machines caused powerful vibration and over noise. These vibrations cause unsafe working conditions and this condition effects products quality negatively even maket he production stopped.
Rubber anti-vibration mounts reduce the vibrations amplitude frequency and protect your machine.
