Technical Specifications

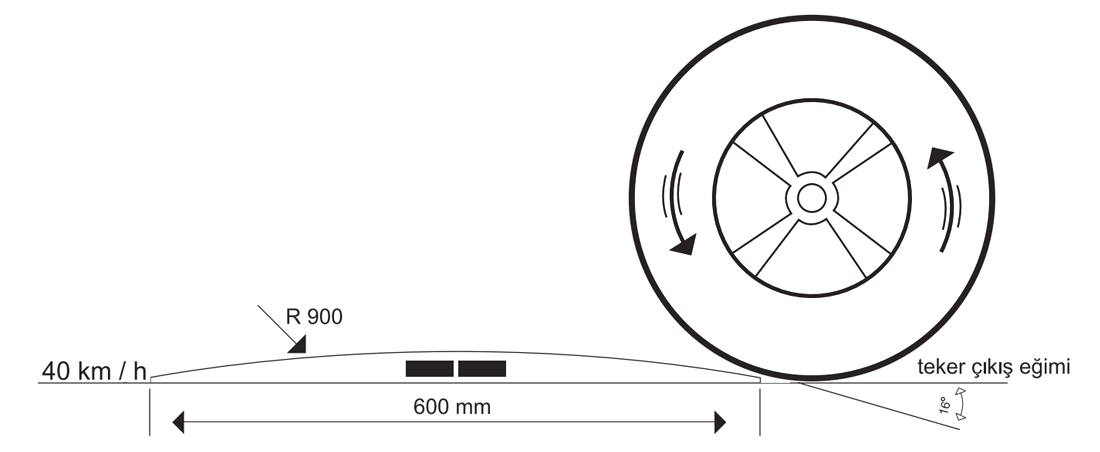

- Width: 600mm Wheel passing
- Lenght: 500 mm
- High (h) 450 mm
- Weight End Cap: 4.20 kg. (+- tolerance 0.30 kg.)
- Weight Main Body: 9.60 kg. (+- tolerance 0.30 kg.)
- Strenght: shore A 80+5
- Density: ASTM D 1056 kg/m 1,55
- Breaking Strenght: ASTM D 412 kg/N
- Elongation: ASTM D 412 % MAK. 210
- Working Strenght is made of rubber based material in accordance with its conditions of between
- -30 C° to +70 C° .4 pieces of end caps are totally 1000mm.
- It is fixed with screws, bolt and dowel to the ground.
